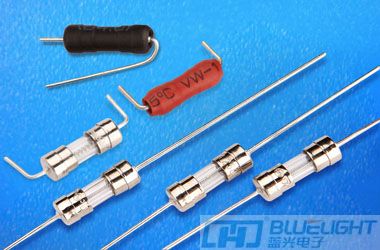

L3T系列/Φ3.6X10玻璃管延时保险丝
蓝光L3T系列玻璃管延时保险丝简介：
Φ3.6X10mm 玻璃保险丝管（慢断）/Φ3.6X10mm Ceramic Tube Fuses (Time-Lag)
材料Materials
本体Body：玻璃管 Glass Tube
引线Lead：镀锡铜线 Tin Plated Copper wire
铜帽Cap：黄铜镀镍 Nickel Plated Brass
可熔体Element：合金丝 Alloy Wire
工作温度Operating Temperature：-55℃ to + 125℃
可焊性Solder ability：260 ℃, 3s Max. (波峰焊wave) /350℃±10, 3s Max. (烙铁焊soldering iron)
安规：UL/CCC/VDE/PSE/KC Approved（详细见下表）
 |  |
| 电气特性 ELECTRICAL CHARACTERISTICS | ||||||||
额定电流 Rated Current | 熔断时间 Opening Time | |||||||
| 150% | 210% | 275% | 400% | 1000% | ||||
| Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | |
| 100mA-10A | 1hour | 2min | 400ms | 10sec. | 150ms | 3sec. | 20ms | 150ms |
In accordance with IEC60127.1 , IEC60127.3 , GB9364.1 , GB9364.3
| 分断能力 INTERRUPTING RATING | |||||||
| VDE | 35 amperes or 10 x rated current ; whichever is greater at 250 AC | ||||||
| CCC | |||||||
| KC | |||||||
| PSE | 100 amperes at 250V AC | ||||||
| UL | 50 amperes at 250V AC and 125V AC | ||||||
| 产品特性 PRODUCT FEATURES | |||||||
材质 Materials | 本体Body：玻璃管 Glass Tube 引脚Lead：铜镀锡 Tin plated copper wire 铜帽Cap： 黄铜镀镍 Nickel plated brass 熔丝Element：合金 Alloy | ||||||
操作温度 Operating Temperature | -55℃~125℃ (需考虑温度折减 Consider de-rating) | ||||||
可焊性 Solderability | 260℃, 3s Max. (波峰焊 Wave) 350±10℃, 3s Max.(烙铁焊 Soldering iron) | ||||||
耐焊接热 Resistance to Soldering Heat | 260℃, 10s Max. (波峰焊 Wave) 350℃, 5s Max.(烙铁焊 Soldering iron) | ||||||
建议焊锡参数 Recommended Soldering Parameters | 波峰焊 Wave soldering parameter 锡炉温度 Soldering por temperature: 260 ℃. 焊接时间 Solder dwell time: 2-5s Max. | ||||||
手工焊 Hand soldering parameter 烙铁温度 Soldering iron temperature 350±5℃ 焊接时间 Solder dwell time: 5s Max. | |||||||
储存条件 Storage Conditions | 在温度+10~60℃、相对湿度≤75%的密闭条件下可存放3年。 Can be stored for 3 years under tight seal condition at temperature +10~60℃ relative humidity ≤ 75%. | ||||||
在温度+10~60℃、相对湿度为95%的非露天下最多可存放30天。 At most can be kept 30 days at temperture +10~60℃ relative humidity be 95% under covered conditions. | |||||||
产品部件号 Part NO. | 额定电流 Current Rating | 安全认证 Safety Approvals | I2T参考值 Reference (A2Sec.) | ||||||
|  |
|
|
|
|
| |||
| L3T 0100 | 100mA | ● | ● | ● | 0.013 | ||||
| L3T 0125 | 125mA | ● | ● | ● | 0.033 | ||||
| L3T 0160 | 160mA | ● | ● | ● | 0.073 | ||||
| L3T 0200 | 200mA | ● | ● | ● | 0.115 | ||||
| L3T 0250 | 250mA | ● | ● | ● | 0.127 | ||||
| L3T 0315 | 315mA | ● | ● | ● | 0.244 | ||||
| L3T 0400 | 400mA | ● | ● | ● | 0.246 | ||||
| L3T 0500 | 500mA | ● | ● | ● | 0.972 | ||||
| L3T 0630 | 630mA | ● | ● | ● | 1.008 | ||||
| L3T 0800 | 800mA | ● | ● | ● | 2.628 | ||||
| L3T 1100 | 1A | ● | ● | ● | ● | ● | 6.228 | ||
| L3T 1125 | 1.25A | ● | ● | ● | 10.08 | ||||
| L3T 1160 | 1.6A | ● | ● | ● | ● | ● | 15.26 | ||
| L3T 1200 | 2A | ● | ● | ● | ● | ● | 21.60 | ||
| L3T 1250 | 2.5A | ● | ● | ● | ● | ● | 29.47 | ||
| L3T 1300 | 3A | ● | ● | 34.40 | |||||
| L3T 1315 | 3.15A | ● | ● | ● | ● | ● | 56.57 | ||
| L3T 1350 | 3.5A | ● | ● | 70.25 | |||||
| L3T 1400 | 4A | ● | ● | ● | ● | ● | 107.2 | ||
| L3T 1500 | 5A | ● | ● | ● | ● | ● | 129.8 | ||
| L3T 1630 | 6.3A | ● | ● | ● | ● | 258.3 | |||
| L3T 1700 | 7A | ● | 197.7 | ||||||
| L3T 1800 | 8A | ● | ● | ● | ● | 244.1 | |||
| L3T 2100 | 10A | ● | ● | ● | 131.8 | ||||
